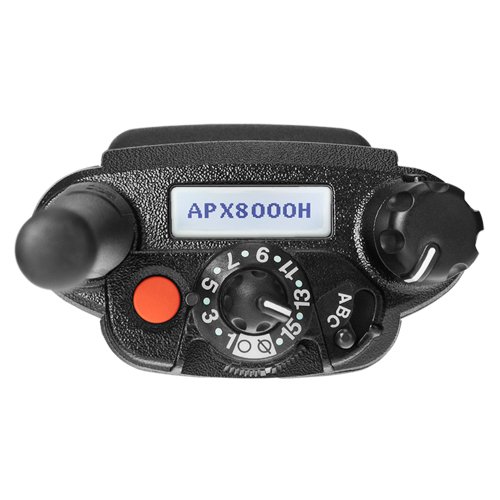

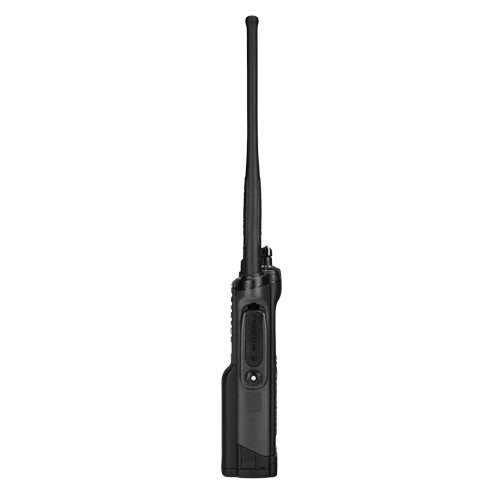

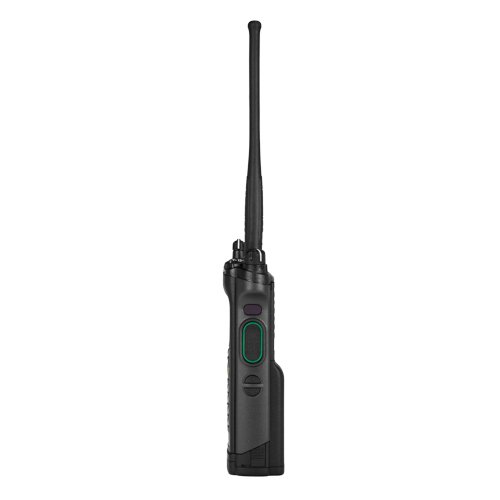

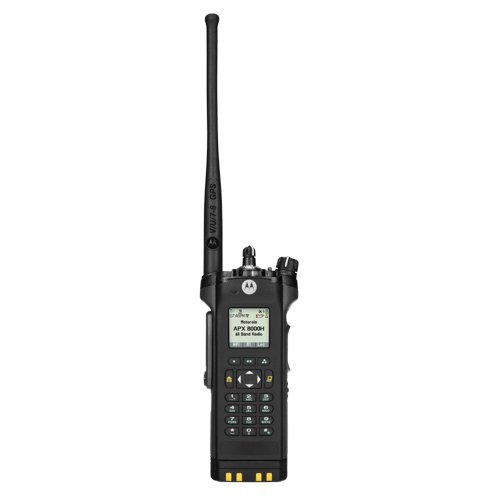

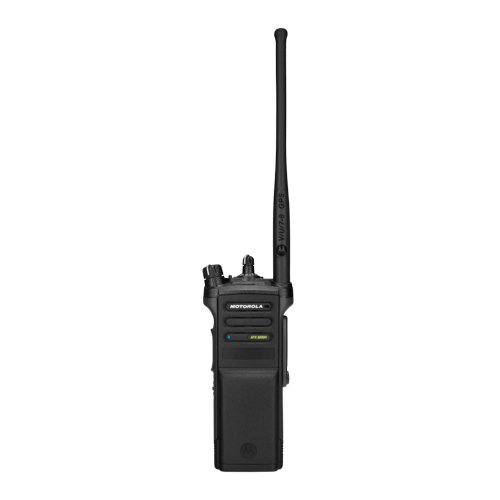

APX™ 8000H All-Band P25 HazLoc Portable Radio

Description

The APX™ 8000H All-Band P25 HazLoc Portable Radio is built for those who operate in the toughest and most hazardous environments. Designed for mission-critical communication, this rugged, intrinsically safe radio provides unmatched reliability, interoperability, and audio clarity, even in the harshest conditions.

Engineered for firefighters, hazardous-materials teams, oil and gas workers, and industrial responders, the APX 8000H delivers multi-band operation (VHF, UHF, 700/800 MHz), enabling seamless communication across agencies and teams. Its HazLoc (Hazardous Location) certification ensures safe performance in explosive atmospheres where standard radios simply can’t go.

With advanced noise suppression, dual microphone technology, and intuitive ergonomics, the APX 8000H keeps communication loud, clear, and consistent when every second counts.

---

Key Features

• All-Band Operation: Communicate effortlessly across VHF, UHF, 700, and 800 MHz bands with a single device.

• HazLoc Certified: Approved for use in Class I, II, and III hazardous environments (Div 1).

• Mission-Critical Audio: Adaptive noise suppression, automatic gain control, and windporting ensure clear transmission in high-noise settings.

• Rugged and Reliable: Meets or exceeds MIL-STD-810 standards for shock, vibration, and extreme temperatures.

• Integrated GPS & Bluetooth®: Location tracking and wireless connectivity for improved situational awareness.

• Wi-Fi Ready: Enable over-the-air programming and updates for faster, more efficient fleet management.

• Secure Communications: AES and ADP encryption for complete voice and data protection.

• Full-Color Display: 2.4-inch front display with intuitive menu navigation and enhanced sunlight readability.

• Ergonomic Design: Large glove-friendly controls, programmable buttons, and emergency quick-access features.

• Battery Optimization: High-capacity smart battery technology ensures extended use in the field.

---

Specifications

General Specifications

• Frequency Bands: VHF (136–174 MHz), UHF Range 1 (380–470 MHz), UHF Range 2 (450–520 MHz), 700/800 MHz (764–870 MHz)

• Channel Capacity: Up to 3,000 channels

• Power Output:

  • VHF: 1–6 W

  • UHF: 1–5 W

  • 700/800 MHz: 1–3 W

• Dimensions (HxWxD): 5.47 x 2.98 x 1.68 in (139 x 76 x 43 mm)

• Weight (with standard battery): Approx. 17 oz (482 g)

• Battery Life: Up to 12–15 hours (depending on band and usage)

---

HazLoc Certifications

• Division 1, Class I, II, III, Groups C, D, E, F, G

• Temperature Code: T4

• Certified for intrinsically safe use in explosive gas or dust environments

---

Environmental & Durability

• Operating Temperature: -30°C to +60°C

• Storage Temperature: -40°C to +85°C

• Water Resistance: IP68 (submersible up to 2 meters for 4 hours)

• Humidity, Salt Fog, Shock, and Vibration: MIL-STD-810 C, D, E, F, G compliant

---

Audio & Connectivity

• Speaker Output: 1W (rated), 1.4W (max)

• Microphone: Dual-microphone noise suppression

• Bluetooth: 4.0 + LE (supports wireless PTT, audio, and data)

• Wi-Fi: 802.11 b/g/n (optional)

• GPS: Integrated GPS / GNSS for precise location tracking

---

Security & Software

• Encryption: AES 256-bit, ADP, and OTAR (Over-the-Air Rekeying)

• Operating Modes: Conventional, P25 Trunking (Phase 1 & 2), SmartZone

• Programming: Over-the-Air (OTAP) or USB direct programming

• Firmware Updates: Over-the-Air software updates via Wi-Fi

---

Why Choose the APX™ 8000H

When communication is the difference between safety and danger, the APX 8000H stands as the ultimate solution. Combining multi-band flexibility, HazLoc safety, and mission-critical durability, it ensures that professionals in high-risk environments can rely on a single, trusted device to keep them connected, always.
